Display
58.42 cm (23 inch) LCD panel display with touchscreen
- Resolution: 1920 x 1080 (16:9 aspect ratio)
- Touch technology: Optical Touch
- Touch points: 2 supported
- Colors: 16.7 million
- Color gamut: 72%
- Response time: 5 ms (typical)
- Contrast ratio: 1000:1
- Image brightness: up to 250 nits
Motherboard
IPISB-NK (LavacaSB)
- Manufacturer: Pegatron
- Form factor: Custom 22 cm (8.7 inches) x 24.2 cm (9.5 inches)
- Chipset: Intel H61
- Memory sockets: 2 x DDR2
- Front side bus speeds: 5 Gb/s DMI (Direct Media Interface)
- Processor socket: LGA 1155
- Expansion Slots:
- Two PCI Express mini card sockets (Generation 2 speed)
- One PCI Express MXM slot that supports a PCI Express x16 graphics card (Generation 2 speed).
Processor
Intel Core i3 2120
- Operating speed: Up to 3.3 GHz
- Number of cores: 2
- Socket: LGA1155
- Bus speed: DMI (Direct Media Interface) - 2.5GT/s
Processor upgrade information
Memory
4 GB
- Amount: 4 GB
- Speed: PC3-10600 MB/sec
- Type: DDR3-1333
Memory upgrade information
- Dual channel memory architecture
- Two DDR3 SO-DIMMs (200-pin) sockets
- 8500 (DDR3-1066)
- PC3-10600 (DDR3-1333)
- Non-ECC memory only, unbuffered
- Supports 1GB, 2GB, and 4GB DDR3 SO-DIMMs
- Supports up to 8 GB on 64-bit PCs
- Supports up to 4 GB on 32-bit PCs ?*32-bit PCs cannot address a full 4.0 GB of memory.
Video graphics
AMD Radeon HD 7450A
- Form factor: PCI Express x16
- Interface: MXM 3.0
- Graphics core: AMD Caicos AiO
- Onboard memory: 1 GB
- Engine clock: 650 MHz
- Memory clock: 800 MHz
- Memory interface: 64-bit
- Memory type: DDR3
- Maximum resolution: up to 1080p
- Ports:
- Supports LVDS (Low Voltage Differential Signaling)
- No I/O connectors on module, all connectors are internal
- Blu-ray Disc support: full playback rate at maximum resolution of the display
- HDCP support: Yes
- Total power consumption: 25W maximum
- DirectX generation: DirectX 11
- Does not supports multi display at the same time
Intel Graphics Media Accelerator HD (DX10.1)
*Integrated video is not available if a graphics card is installed.
- Integrated Intel HD 2000 graphics (supported by the processor)
- One Mobile PCI Express Module (MXM) socket
- MXM 3.0 version: Type A
- <35W
- Shared memory up to 256 MB
Sound/Audio
Audio CODEC: IDT 92HD91
Integrated High Definition audio
- Audio CODEC: IDT 92HD91
- Supports jack sensing
Speakers
- Channels: 2.0 stereo (2 speakers)
- Power: 4W per speaker
Microphone
- Interface: Integrated 2 channel (stereo array)
Networking
LAN: Gigabit 1000-Base-T
- Technology: Realtek RTL8111E
- Data transfer speeds: up to 10/100/1000 Mb/s
- Transmission standards: Gigabit 1000-Base-T Ethernet
TV Tuner
AVerMedia DVB-T TV tuner
- Interface: PCI Express mini card
- Supports digital DVB-T transmission standard
Hard drive
1 TB
- Size: 1 TB
- Interface: SATA
- Rotational Speed: 7200 RPM
CD/DVD disc drive
Slim Tray 8x Supermulti DVD drive
- Interface: SATA
- Data buffer memory: 2 MB
Memory Card Reader
6-in-1 multimedia card reader
Supports the following cards:
- Secure Digital (SD)
- Secure Digital High Capacity (SDHC)
- MultiMediaCard (MMC)
- MultiMediaCard Plus (MMC Plus)
- Memory Stick (MS), including Memory Stick Pro (MS-Pro)
- xD Picture Card (xD)
Supports the following cards with an adapter:
- Mini Secure Digital (mini-SD)
- Micro Secure Digital (micro-SD)
- Reduced-Sized Multi Media Card (RS-MMC)
- MMC Mobile
- MS DUO
- MS Pro Duo

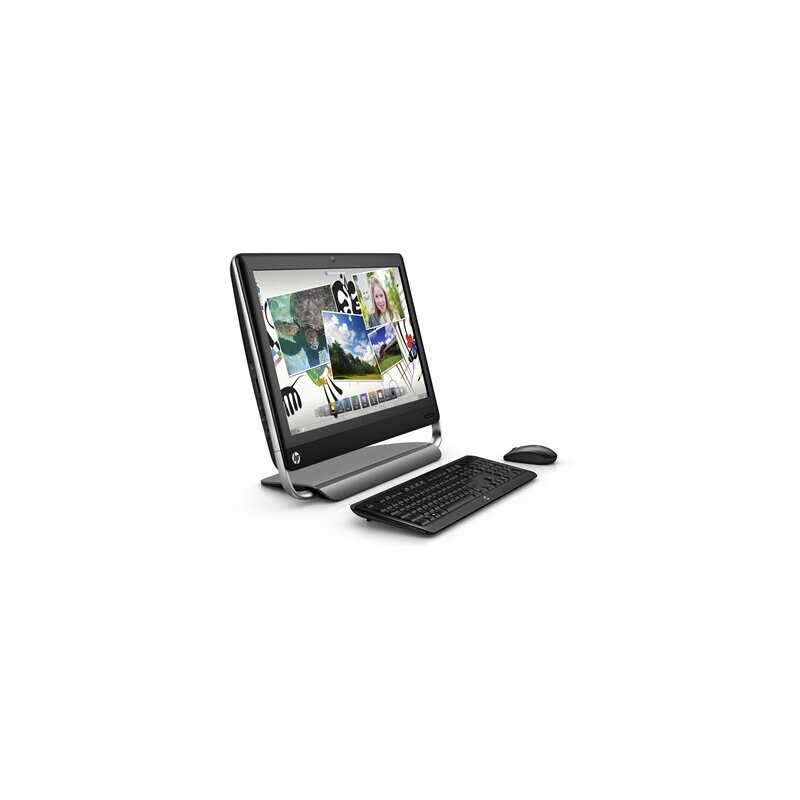

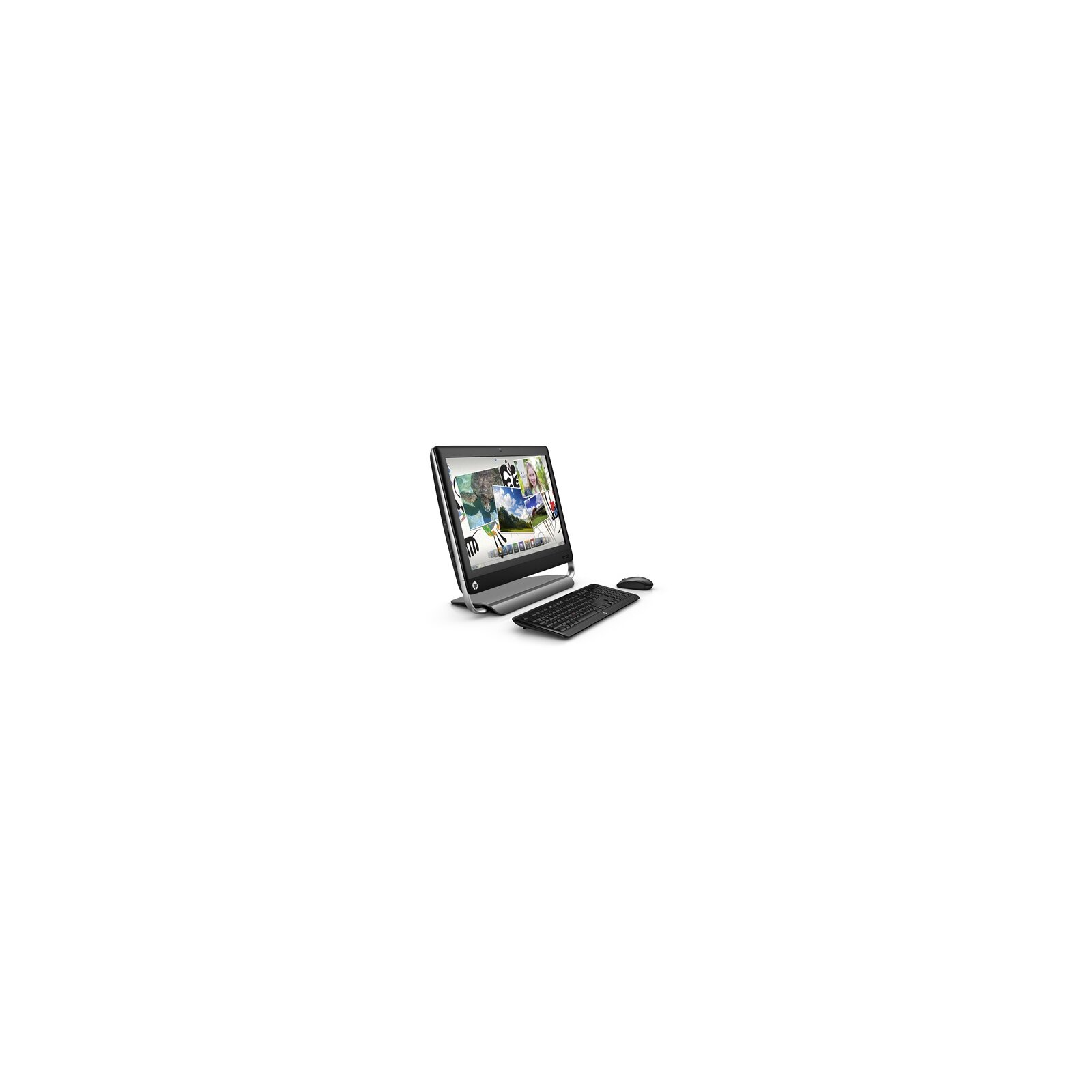

Computer Case
All-in-One
- Height with stand: 45.7 cm (17.9 inches)
- Width: 58.0 cm (22.8 inches)
- Depth with stand: 21.7 cm (8.5 inches)
- Weight:
- with UMA graphics: 11.54 Kg (25.44 pounds)
- with MXM graphics: 11.7 Kg (25.79 pounds)
Front of the system
1 - Optical disk drive
2 - Monitor controls/monitor menu options (only on models with an HDMI port)
3 - Kensington lock slot
4 - Cover
5 - Memory card reader and other I/Os on left side
6 - Motherboard back I/Os (specific I/Os are model dependent)
7 - USB dongle
8 - Sweep design stand
Left side of the system
1 - Left side ports
Right side of the system
1 - Optical disc drive
Power Supply
External 180W
- Total wattage: 180W external power adapter (100V-240V)
- Output voltage: 19V
- Output Amps: 9.5
I/O Ports
Left I/O ports
1 - Hard drive activity indicator
2 - Memory card reader activity indicator
3 - 6-in-1 Memory card reader
4 - Two USB 3.0 ports
5 - Microphone jack
6 - Headphone jack
Back I/O ports
1 - IR Blaster port
2 - Four USB 2.0 ports
3 - Subwoofer
4 - TV tuner port
5 - Power Connector
6 - LAN (ethernet)
7 - Audio port
Keyboard, mouse and input devices
HP Wireless Keyboard with Beats key
- Interface: USB receiver
- Effective distance: 10 meters
- Dimensions:
- Length: 460 mm (18.1 inches)
- Width: 157.4 mm (6.19 inches)
- Height: 32.8 mm (1.29 inches)
- Weight: 0.61 Kg
- Special buttons:*
- Standard
- Beats key. The Beats key turns on the Beats function, which is a type of bass sound quality for the speaker.
- *Buttons are not configurable
HP wireless mouse
- Interface: wireless USB dongle
- Buttons: left, right, and clickable scroll wheel
Remote control for Media Center
Figure 14: View of remote control
- Printer key
- Infrared remote control
- Compatible with Windows Media Center
Webcam
1 - Web camera
2 - Activity LED
3 - Microphone array
Built-in webcam and array microphone located at the top of the computer.
- Camera: 1280 x 720 with low-light enhancement
Software
Titles that shipped with PC
Operating System | - Microsoft Windows 7 Home Premium (64-bit); Service Pack 1
|
TouchSmart | - HP TouchSmart Magic Canvas 5.1
|
